Regulatory codes mandate the use of Acid Neutralisation Tanks to neutralise corrosive wastes, preventing damage to waterways drains, sewers, soil, and waste pipes. Any discharge of corrosive liquids, spent acids, or harmful chemicals into plumbing systems is strictly prohibited without prior neutralisation or treatment.

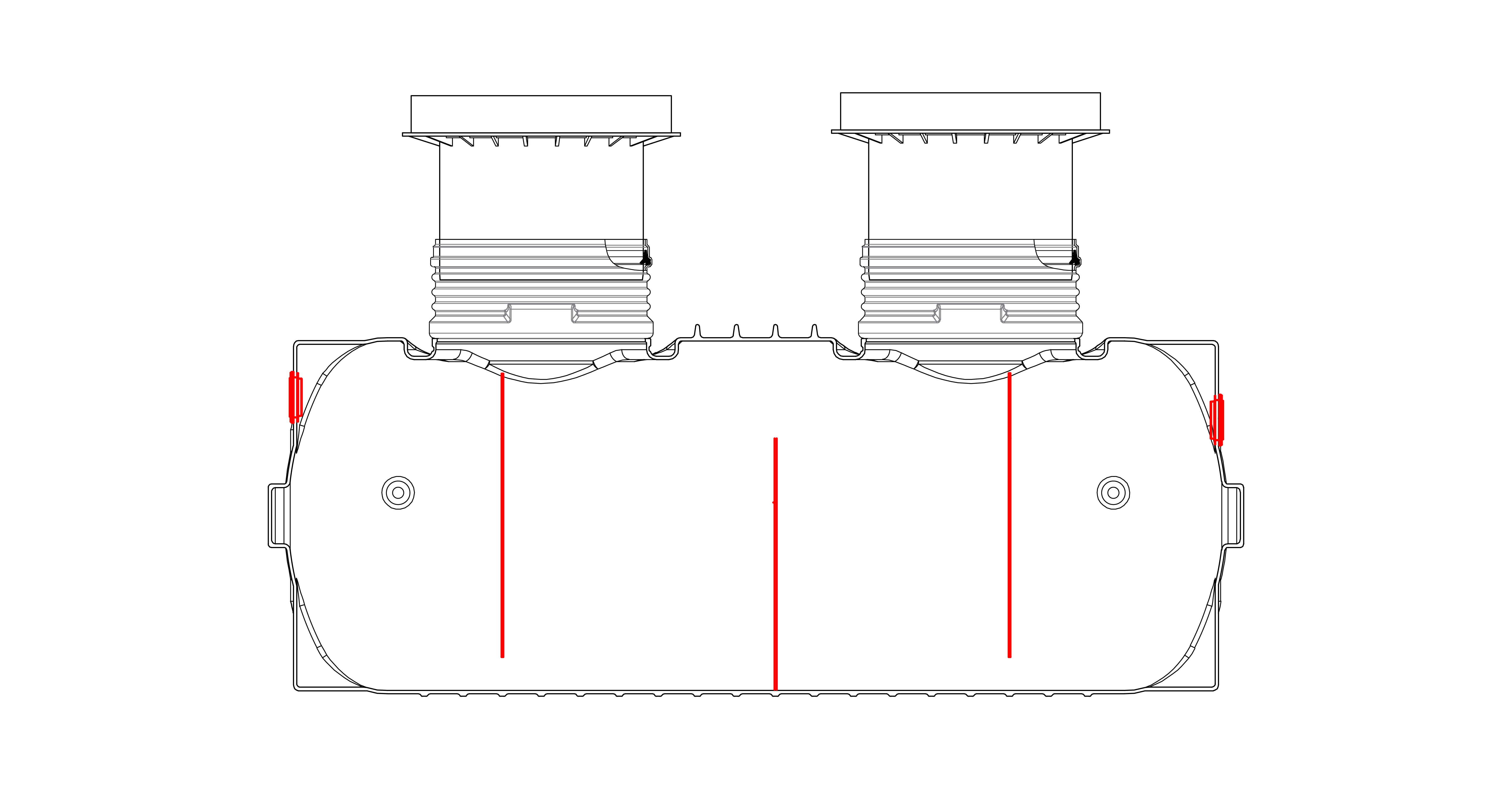

GRAF’s Acid Neutralising Tank
includes three baffles. For buffering the pH prior to discharge, marble chips may be specified to meet the acceptance criteria of acid and alkaline trade waste.
Super Compact Tank
The Acid Neutralising Tank is developed with our superior Super Compact Tank.
The SC tank is named for its compactness; engineered to streamline installation and optimise functionality. With a focus on efficiency, this tank boasts an ideal length-to-width ratio, ensuring ample space between inlet and outlet without sacrificing its compact footprint.
- AS/NZS: 9001
- European Standard EN 1433
- AS/NZS: 1546.1
- AS/NZS: 4766
- Products and management systems independently verified & certified
- 15- year warranty
Sizing
| Volume [l] | Length [mm] | Width [mm] | Height [mm] | Weight [kg] | Ø [mm] | order no. | add to enquiry |
|---|---|---|---|---|---|---|---|
| 2.000 | 3000 | 1180 | 1100 | 190 | 305 | ||
| 3.000 | 3000 | 1415 | 1340 | 235 | 305 | ||
| 4.000 | 3000 | 1565 | 1500 | 285 | 290 | ||
| 5.000 | 3000 | 1735 | 1660 | 355 | 290 | ||
| 8.000 | 3490 | 2240 | 2290 | 495 | - | ||
| 10.000 | 3490 | 2240 | 2290 | 495 | 290 |
calculated size Request for information
