100 % water yield
Available in the following versions
- External filter to clean the rainwater before the tank
- Available for pedestrian loading and for vehicle loading
- 100 % water yield: therefore, ideal for smaller roof areas
- Filter insert mesh width 0.35 mm (0.01")
- Continuously variable installation depth of 600 - 1,050 mm (22.4 - 41.3") using the telescopic dome shaft
- Lockable, childproof cover
- Flush with ground level
- Minimal height offset (270 mm / 10.6") between the inlet and outlet
- Also suitable for infiltration and pond systems
- Maximum roof surface area of 350 m² with connections DN 110 and 500 m² with DN 160
Advantages
Thought-out in every detail
The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.

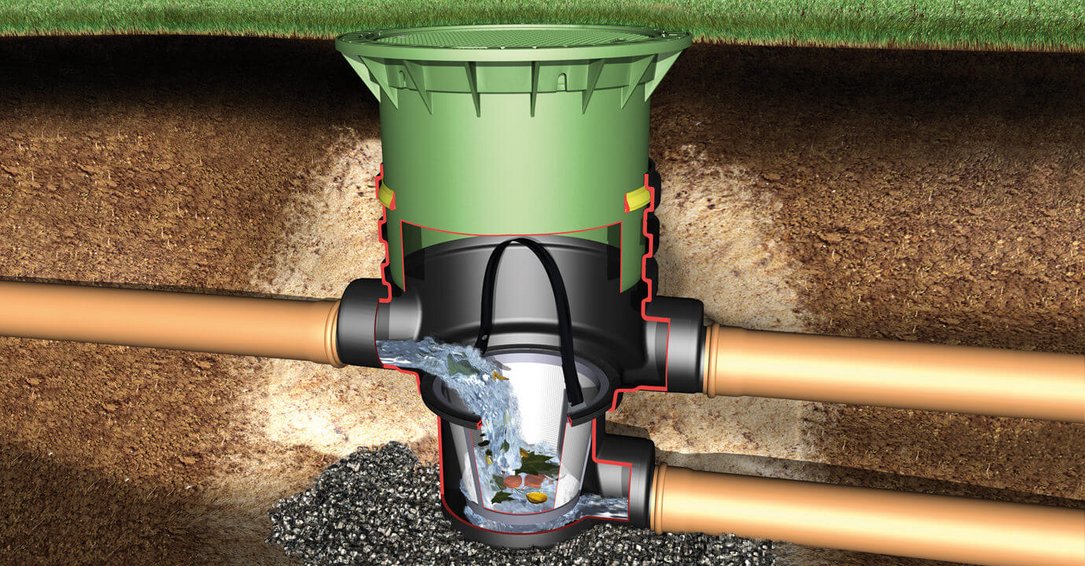

The complete package includes a basket filter for 100% water yield, making it ideal for small roof areas or downstream infiltration.

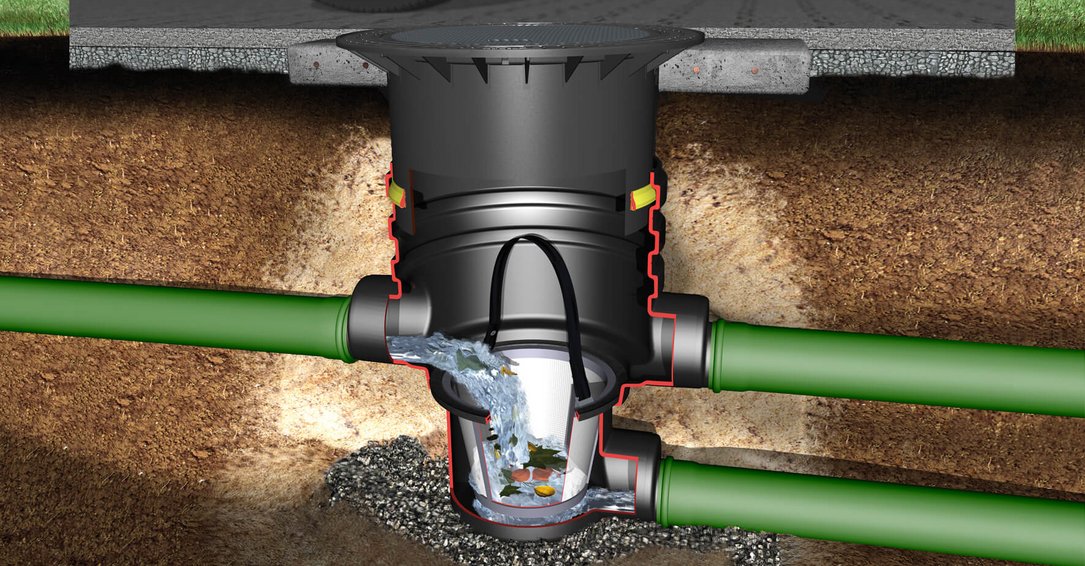

Includes telescopic cast-iron dome shaft withvehicle-loading cover. This enables installation e.g. under the courtyard driveway.
The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.
The complete package includes a basket filter for 100% water yield, making it ideal for small roof areas or downstream infiltration.
Includes telescopic cast-iron dome shaft withvehicle-loading cover. This enables installation e.g. under the courtyard driveway.
Sizing
| Length [mm] | Height [mm] | Ø max. [mm] | Weight [kg] | Width [mm] | order no. | add to enquiry |
|---|---|---|---|---|---|---|
| 760 | 650 | 550 | 60 | 550 | 340021 |
calculated size Request for information
