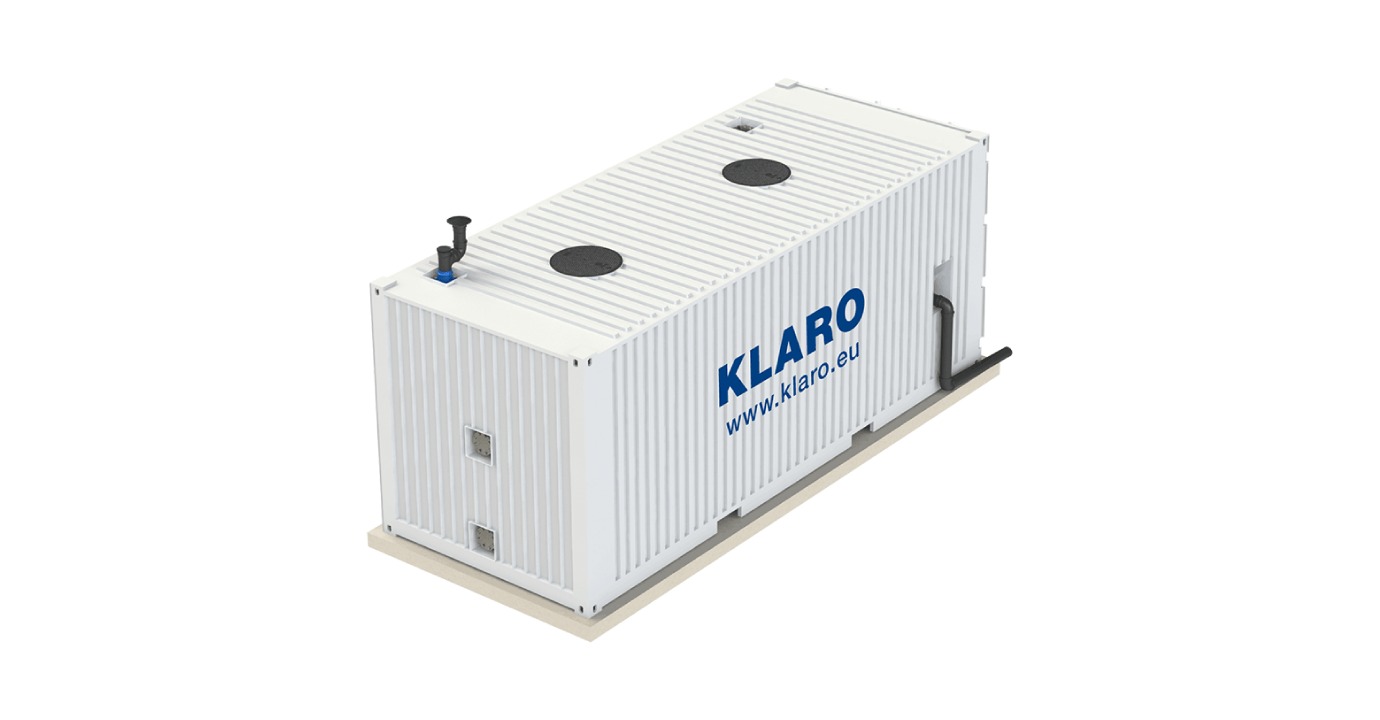

Container Wastewater Systems are engineered and constructed in Germany with maximum operating reliability our priority.

Advantages:

  • Easy to transport (standard 20 ft and 40 ft container)
  • Prefabricated, expandable design
  • Rapid assembly and disassembly
  • Low power consumption (0.87 kWh per 1,000 l water treated)
  • Virtually odourless thanks to vented tanks
  • Parallel connection for larger volumes of wastewater
  • Less maintenance knowledge needed
  • Plug & play, ready for immediate use
  • Made in Germany

Klaro container.one systems are suitable for:

  • Working camps
  • Mining camps
  • Military camps
  • Quarries
  • Logging camps
  • Temporary works
  • Research camps
  • Upgrades

Technical data:

General system data

  • Equipment: 20 ft side door container
  • Material: Steel
  • Weight (tare): 3,180 kg
  • Dimensions: (L) 6,058 mm; (B) 2,438 mm; (H) 2,591 mm
  • Inlet: DN 110; height 2,600 mm
  • Outlet: DN 110; height 945 mm
  • Operating voltage: 400 V, 50 Hz (60 Hz)
  • Rated current: 16 A
  • Temperature range: -10°C to +35°C
  • Power consumption: 13 kWh/d

Wastewater treatment data

  • Inflow volume: 15 m³/d more on request
  • BOD5 load: 6 kg/d (60 gBOD5/inhab.*d)
  • Operating time: 24 h
  • Operation: Automatic

Process qualtiy

  • SS (suspended solids) < 30 mg/l
  • BOD5: < 10 mg/l
  • COD: < 120 mg/l
  • NH4-N: < 10 mg/
  • Ntot: < 20 mg/l
  • P < 1 mg/l
  • eColi < 100 cfu/100 ml

Sizing

Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
6058243825913180on request
12192243825914000on request

calculated size Request for information

Accessory
