Market leader in firefighting water storage tanks
Underground firefighting water tanks provide a reliable supply of water for extinguishing fires in an emergency. When the mains water supply is insufficient, having the correct volume of water available in a fire water storage tank is crucial for protecting people, animals, schools, hotels, hospitals, train stations, airports, forests, wind turbines, petrol stations, industrial buildings, residential areas, and other businesses in Ireland.
✓ Make sure the correct volume of water is always available with a fire water storage tank
✓ Deliver water to firefighters and other services quickly and efficiently
✓ Ensure a reliable solution that can be regularly inspected and complies with local regulations
Find out how we can help!
Speak to a member of our team who specialises in firefighting tanks for new and existing developments by calling us at +353 9351765
Engineered for firefighting: purpose-built firefighting tanks with the right connections for effective and efficient delivery of water
✓ Available in large volumes using multiple fire water storage tanks
✓ Includes firefighting water connections suitable for firefighters and other services
✓ Manufactured using lightweight material for easy transport and installation
✓ Suitable for complex projects that are difficult to access, have limited space, or challenging ground conditions
✓ Reliable solution that can be inspected and complies with local regulations and certifications
Protecting our customers and the environment
Firefighting water storage tanks

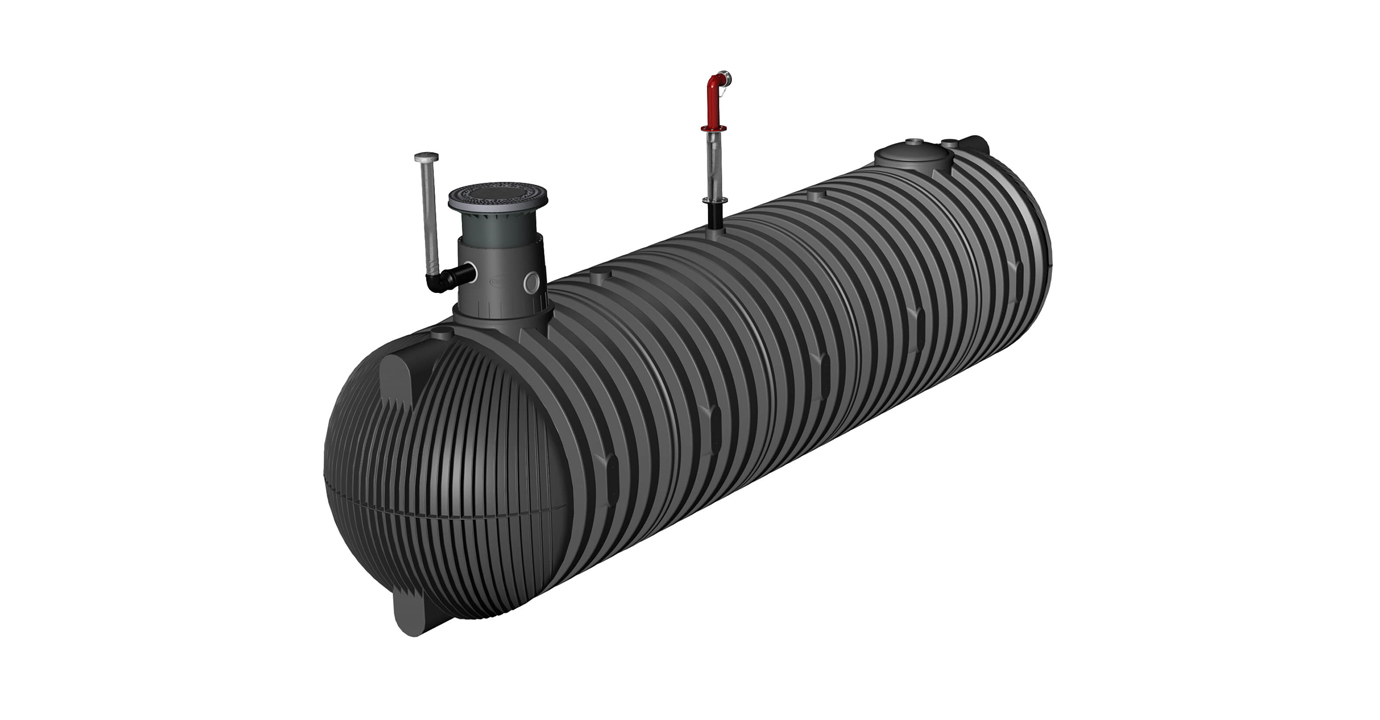

Carat XXL firefighting water tank
- Flexibility and stability perfectly combined
- Available in sizes up to 52,000 litres
- Modular system allows for independent cleaning while ensuring adequate volume
- Suitable for HGV loading up to 40t
- Telescopic dome shaft (two included with certain tanks)
- Easy access ladder for inspection
- Fill with drinking water or rainwater
- Optional EcoBloc firefighting water tank for additional storage
- Includes firefighting water connections in accordance with BS336
- 50-year design life

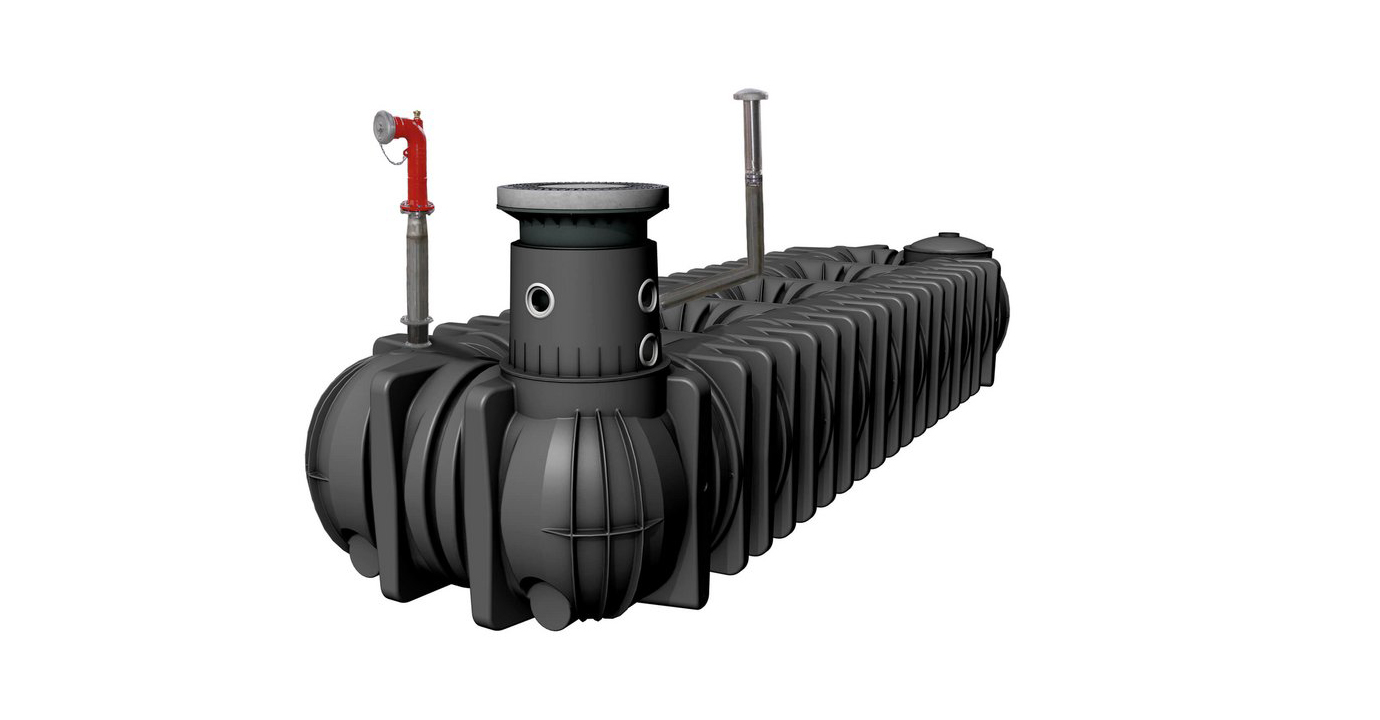

Platin XXL firefighting water tank
- Available in sizes up to 25,000 litres
- Modular system allows for independent cleaning while ensuring adequate volume
- Shallow installation for projects with rock or water table on-site
- Suitable for HGV loading up to 30t
- Telescopic dome shaft (two included with certain tanks)
- Easy access ladder for inspection
- Fill with drinking water or rainwater
- Optional EcoBloc firefighting water tank for additional storage
- Includes firefighting water connections in accordance with BS336
- 50-year design life

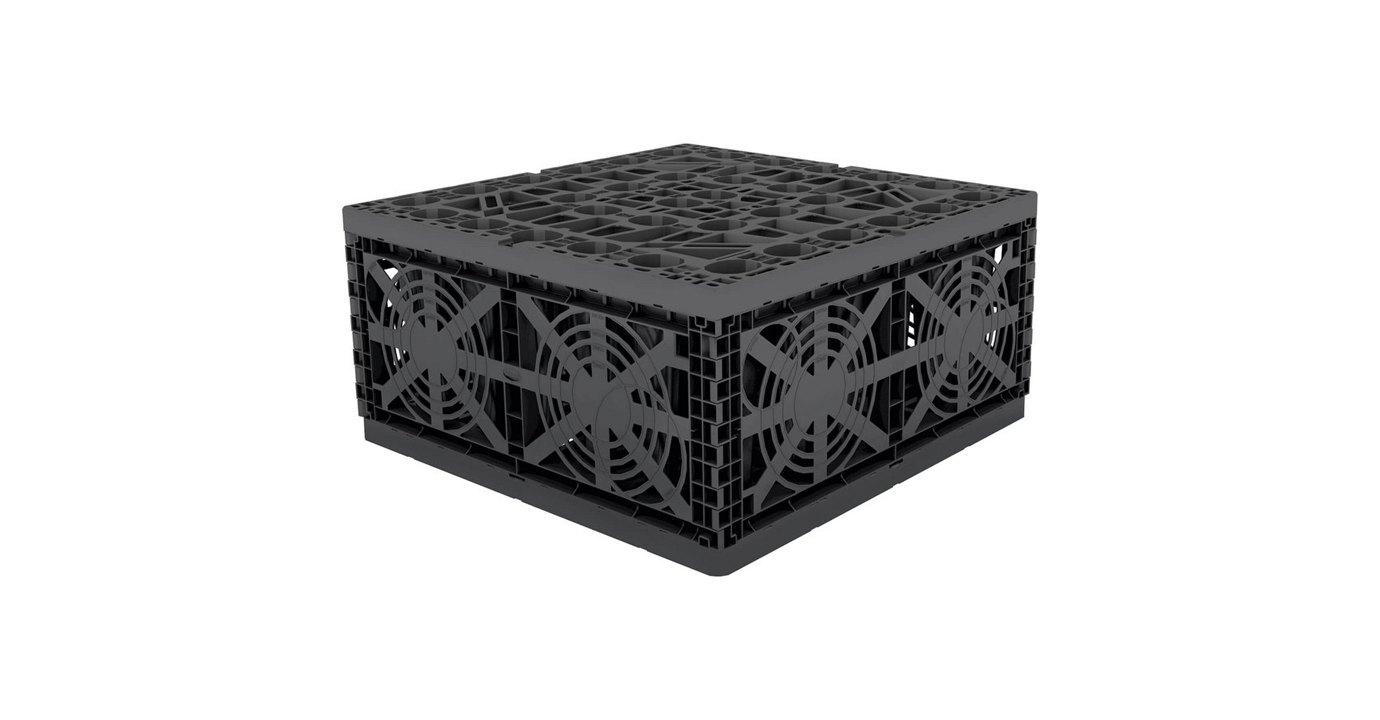

EcoBloc firefighting water tank
- Flexible modular design with unlimited capacity
- Shallow installation for projects with rock or water table on-site
- Modular system allows for independent cleaning while ensuring adequate volume
- Suitable for HGV loading up to 40t
- Fill with drinking water or rainwater
- Combined with a Carat XXL or Platin XXL firefighting water tank for additional storage
- Easy access for inspection
- Installed by our team at GRAF Ireland
- 50-year design life
More information
-
Design & planning
In Ireland, when applying for planning permission to build a new development, it's essential to ensure that there is sufficient water available to extinguish a fire in an emergency. If the mains water supply is insufficient, a holding or fire water storage tank may be required to meet the necessary water volume for firefighting. These tanks must be independent of the main water supply and equipped with the appropriate suction connections and fittings, compliant with BS336 standards.
Once you've determined the required flow rate (litres per second) and the volume needed to safely extinguish a fire on your development, our engineers will design a custom solution tailored to your specific needs.
-
Installation
Our lightweight modular tank design allows for easy transport and straightforward installation, even in challenging locations. Each tank comes with pre-fitted lifting straps from the factory, making handling and placement hassle-free. Additionally, all necessary fittings and connections are included with the delivery, ensuring that the installation is completed efficiently. Our experts provide comprehensive assistance and clear guidelines, helping you complete the installation with confidence.
-
Inspection & maintenance
Our firefighting water tanks are equipped with easy-access ladders for regular inspections. The modular system design allows for the independent cleaning of each tank, ensuring that an adequate volume of water is always available when needed.
-
Regulations & certification
Carat XXL, Platin XXL, and EcoBloc tanks are all CE-marked, ensuring compliance with the highest European standards for safety and quality. Additionally, the firefighting connections on these tanks are certified to BS336 standards, providing reliable and standardised performance in the event of an emergency.
Request a drawing for your project!
Our engineers will create a detailed drawing based on your input and site specifications.

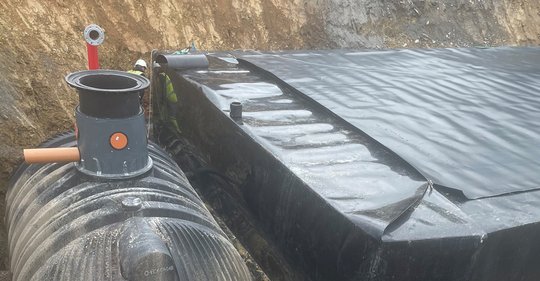

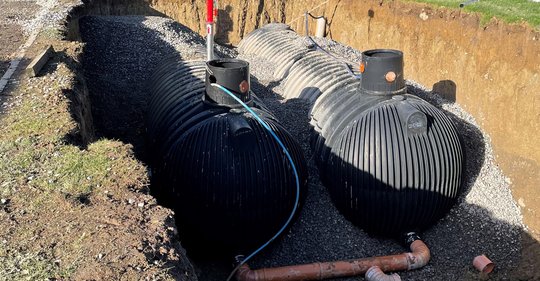

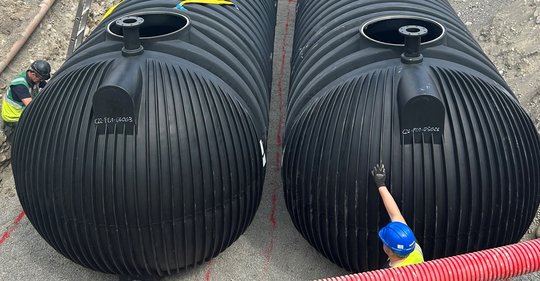

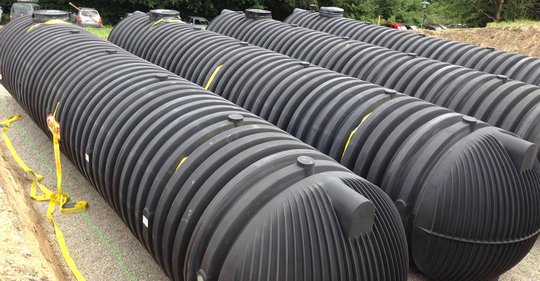

Case studies
Some of our favourite firefighting water tank projects
