The Carat XXL firefighting water tank is available in sizes from 16,000 to 122,000 l and suitable for lorry bearing.

  • Delivery includes all firefighting water accessory parts according to DIN 14230
  • Dome shaft allows easy access / rescue from tank
  • Individual tanks can be enlarged / connected to create large volumes
  • Usage with drinking water or rainwater
  • Individual adjustment to ground level (earth covering / angle of slope)
  • Low procurement costs
  • Incl. Telescopic dome shaft concrete cast iron according to DIN 3223

Advantages Carat XXL firefighting water tank:

  • Flexibility and stability perfectly combined
  • No need for heavy load transport on trucks up to the size of 76,000 l
  • Secure investment thanks to the market leading 15-year warranty!
  • Lorry bearing up to 40 t
  • Groundwater-stable
  • Dome opening with stainless steel profile for precision fit and secure mounting
  • Lighter than equal tank made of concrete or steel
  • Numerous DN 110/160/200 connection surfaces

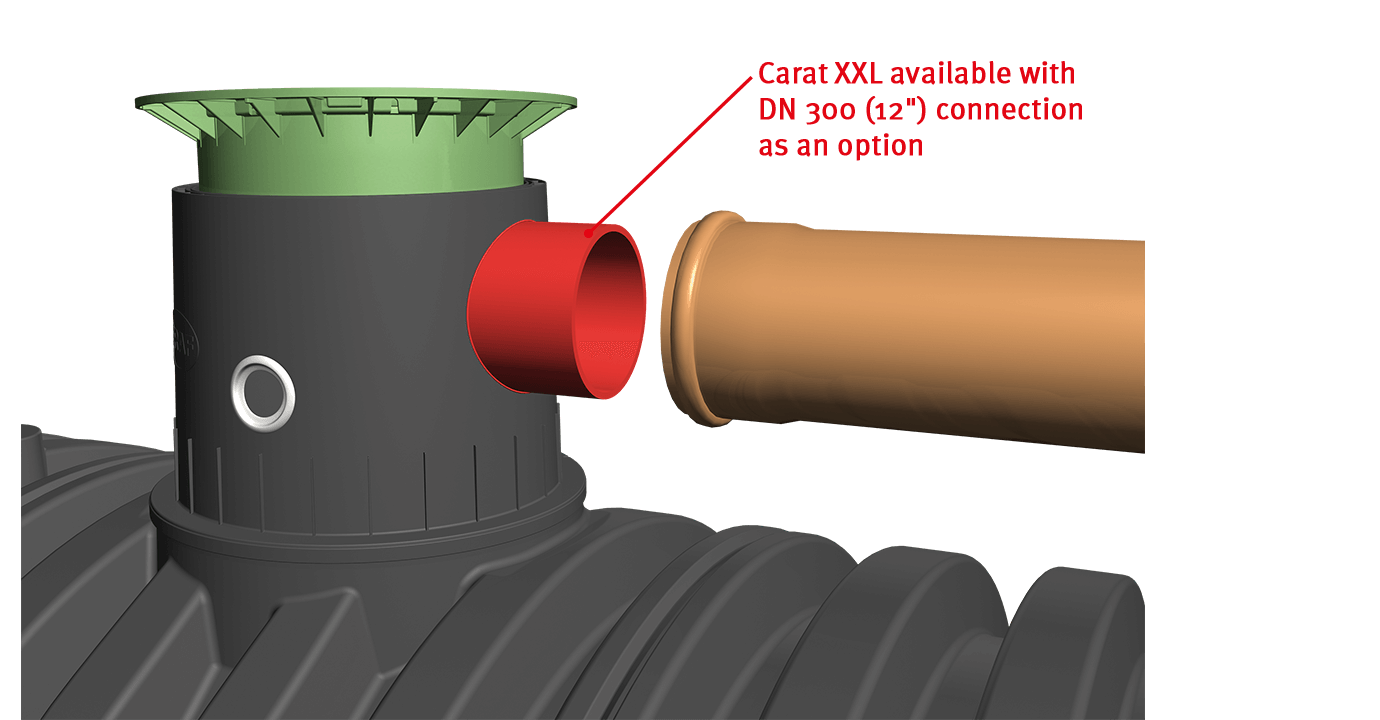

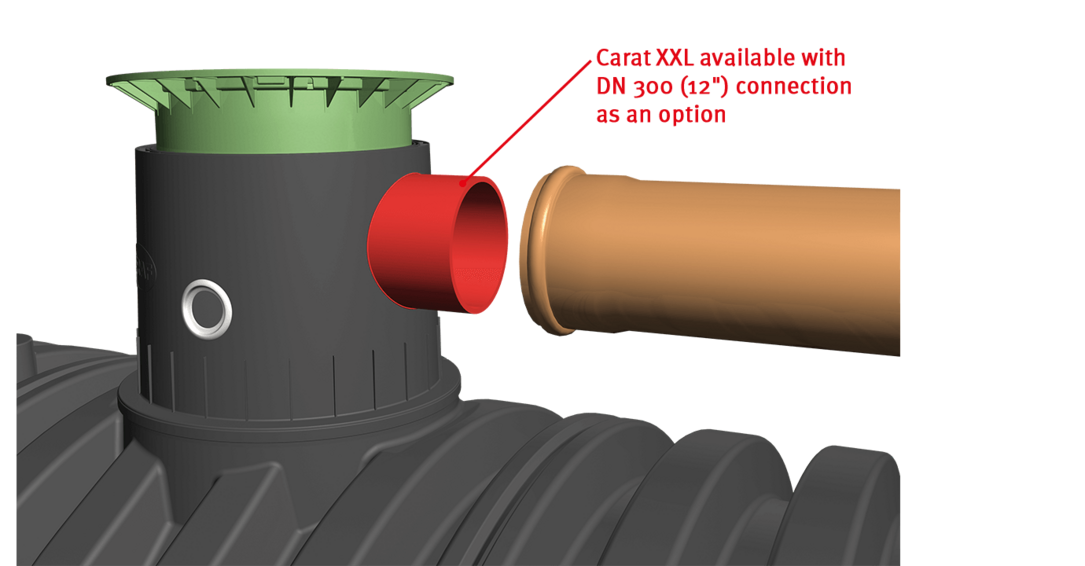

  • Optional DN 315 connection

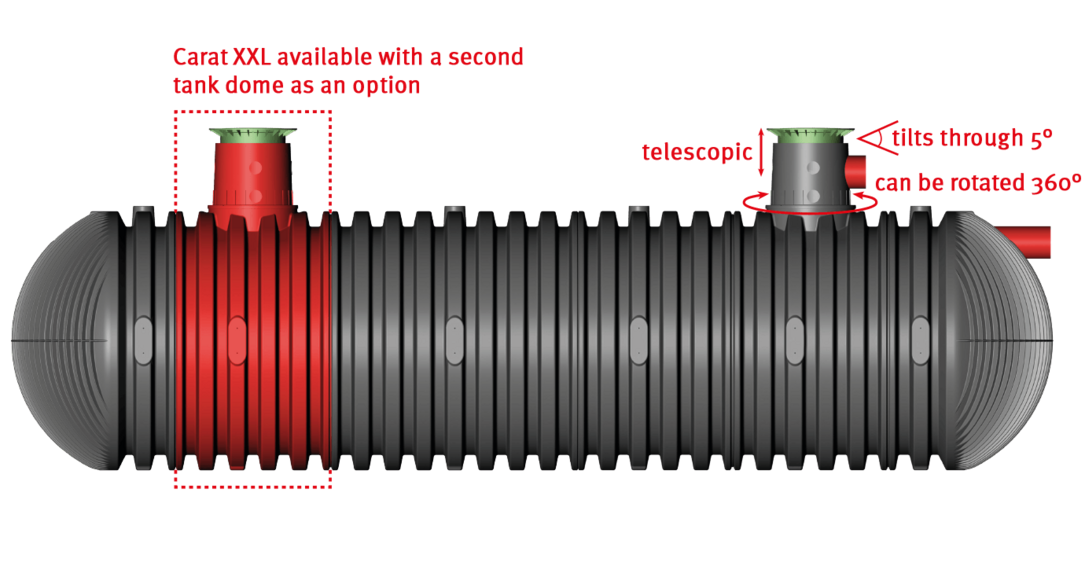

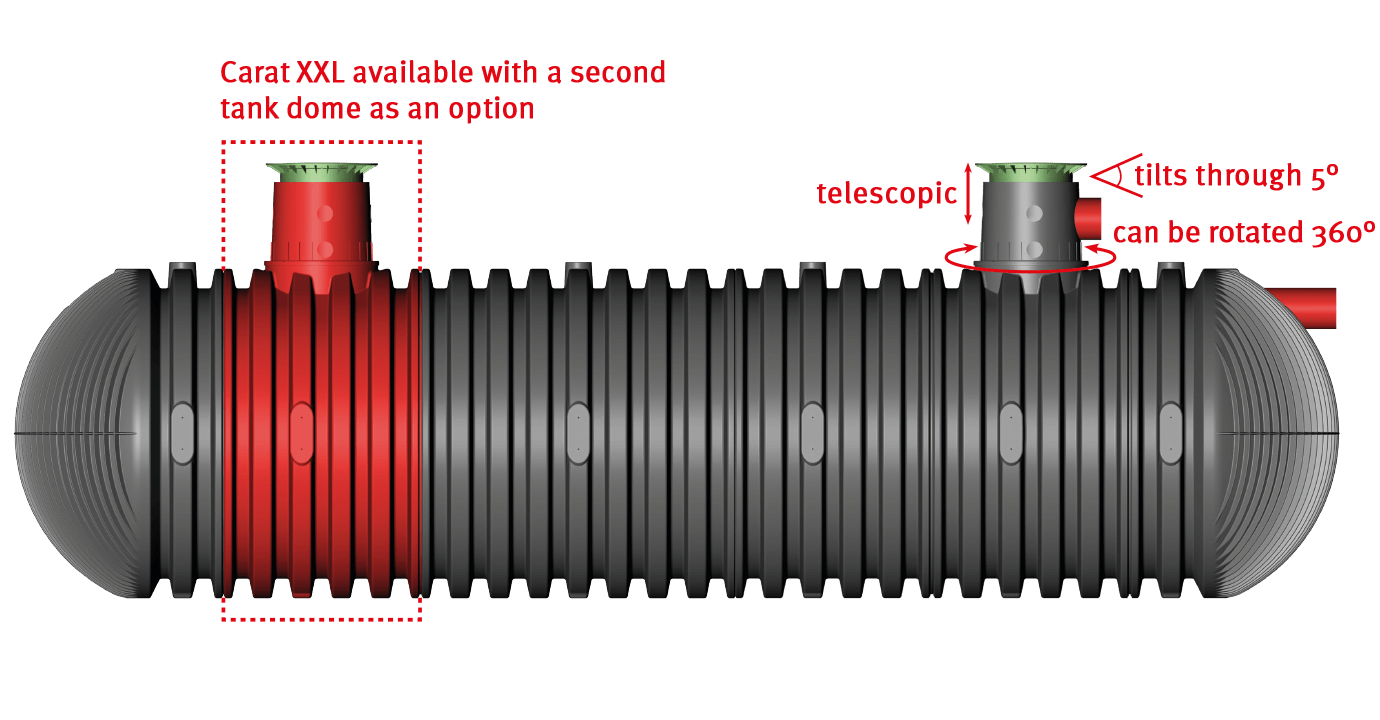

  • Optional second tank dome (already included with certain tanks sizes)

Scope of supply:

Welded-in plastic intake pipe DN 125 (5") with flange, stainless steel strainer and anti-vortex plate, including stainless steel intake pipe extension piece DN 125 (5") with flange, firefighting water intake connection with rod fitting and A fixed coupling to DIN 14244, stainless steel ventilation chimney DN 100 (4") with hood and insect-proof screen for vertical installation, access ladder incl. mounting kit for mounting in tank dome, holder for sign "Firefighting Water Extraction Point" with stainless steel post to DIN 4066 (B2), telescopic dome shaft lorry to DIN 3223

Sizing

Volume [l]Useable volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
12200010980028600250031604900380071
11600010440027330250031604610380070
11200010080026360250031604510380069
1060009540025090250031604220380068
1020009180024120250031604120380067
960008640022850250031603830380066
920008280021880250031603730380065
860007740020610250031603440380064
820007380019640250031603330380063
760006840018370250031603040380062
720006480017400250025502940380061
660005940016130250031602650380060
620005580015160250031602550380059
560005040013890250031602260380058
520004680012920250031602160380057
460004140011650250031601870380056
420003780010680250031601770380055
36000324009410250031601480380054
32000288008440250031601380380053
26000234007200250031601100380052
22000198006230250031601000380051
1600014400459025003160750380050

calculated size Request for information

Technical details

Accessibility

Earth covering with loading capacity [mm] 800 - 1500
max. axle load [t] 13.5
max. vehicle weight [t] 40
max. vehicle weight with reinforced concrete slab [t] 60

Groundwater installation

Earth covering with groundwater installation [mm] 800-1500

Installation

max. earth covering [mm] (without groundwater, vehicle loading) 1500
