New design - higher installation depth

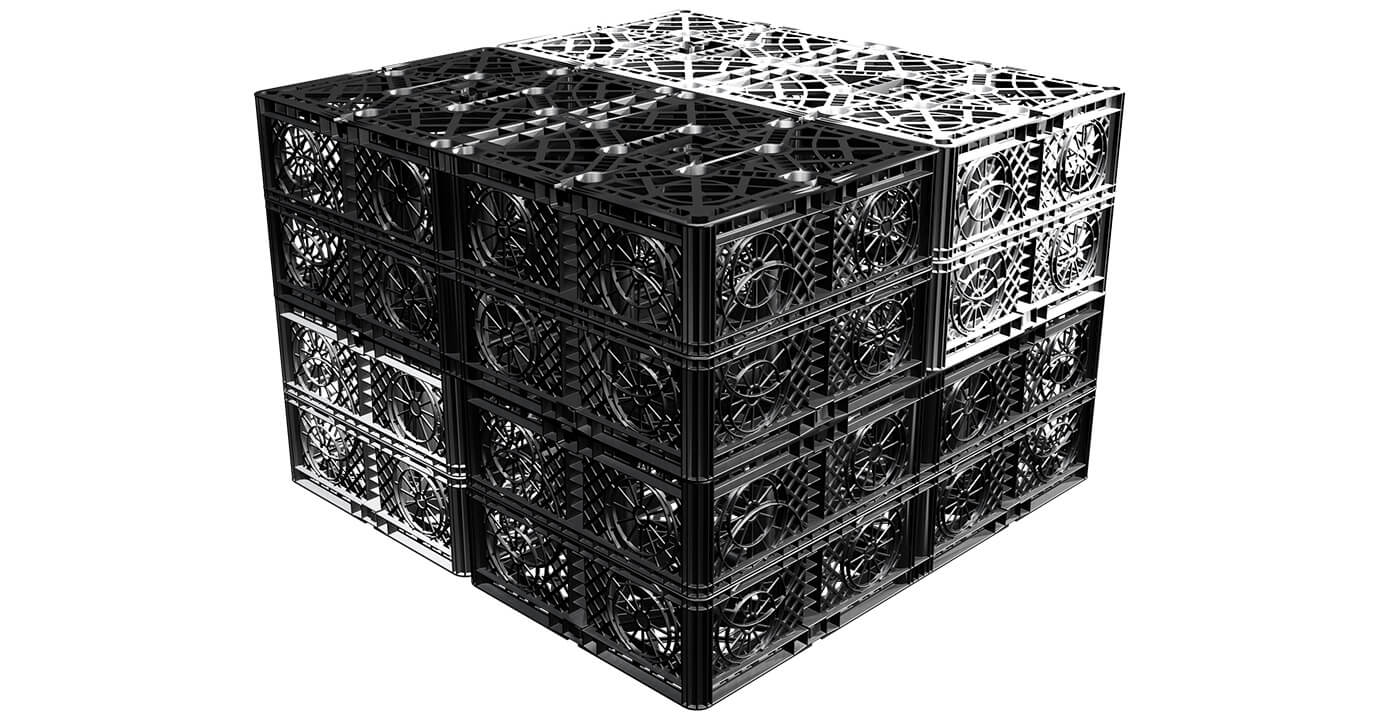

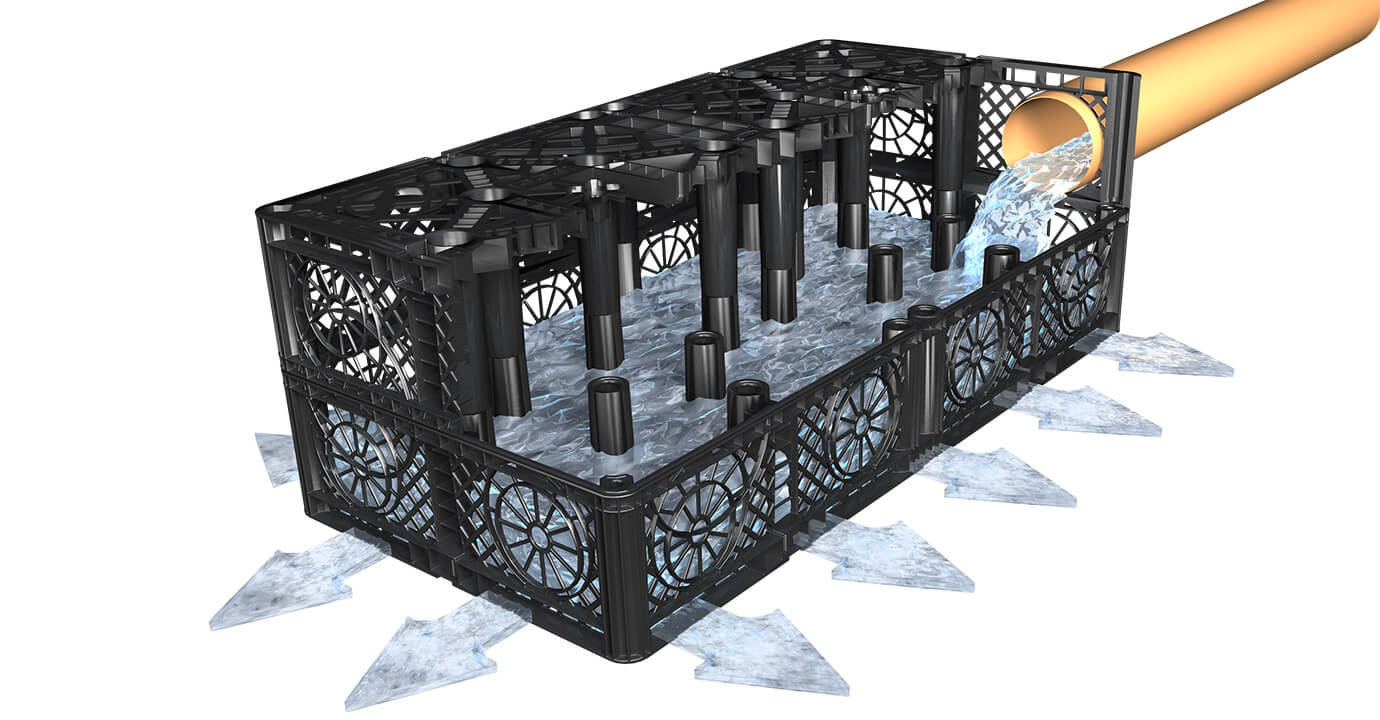

Introducing the Rain Bloc Compact 300, a revolutionary tool for managing stormwater. Higher installation depths are possible thanks to its innovative design, and versatile connection choices in a range of diameters (DN 100, 120, 150, and 200) guarantee a custom fit for your project. This system can tackle even the most challenging drainage tasks thanks to its outstanding maximum installation depth of 7.5 metres. Additionally, it offers a handy DN 100 (4") top connection and simplifies configuration with pre-installed pins for vertical connection. The Rain Bloc Compact 300 raises the bar for efficiency and adaptability in stormwater management.
| Vehicle weight <3 tonnes | Vehicle weight <9 tonnes | Vehicle weight <12 tonnes | Vehicle weight <30 tonnes | Vehicle weight <40 tonnes | |
| Minimum cover depth (m) | 0.50 | 0.55 | 0.65 | 0.70 | 1.10 |
| Maximum cover depth (m) | 3.00 | 3.00 | 3.00 | 2.75 | 2.50 |
Sizing
| Length [mm] | Width [mm] | Height [mm] | order no. | add to enquiry |
|---|---|---|---|---|
| 1200 | 600 | 420 | 360050 |
calculated size Request for information
