For maximum catchment areas of 6,000 m²! External filter for cleaning the rainwater at large plants.
- Water yield of over 95 %
- Self-cleaning filter principle
- Stainless steel filter insert with 0.35 mm(0.01") mesh
- Maximum catchment area 3,000 m² with DN 300 (12") connections and 6,000 m² with DN 400 (16") connections
- Patented filter technology
- Larger connections on request

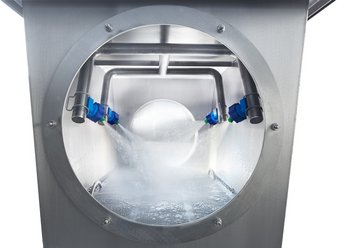

- Includes cleaning unit
- Height loss of just 45 mm (1.75") between inlet and dirty water outlet
Sizing
| Length [mm] | Width [mm] | Height [mm] | Weight [kg] | order no. | add to enquiry |
|---|---|---|---|---|---|
| 1125 | 675 | 770 | 75 | 340096 |
calculated size Request for information
