Large Biological Wastewater Treatment Plants up to 1000 inhabitants for the oneadvanced

  • System conformity: ATV A-122
  • Purifying technology: fully biological SBR lifting technology
  • XXL systems available up to: 1000 inhabitants | 150,0000 l/d
  • Maintenance interval: 2 – 4 per year
  • Warranty for underground tank: 15 years
  • Warranty for parts and components: 3 years

Standard equipment: Control power failure recognition, Temperature sensor to protect against overheating, Logbook function

Available as options: +R Remote transmission, +P Phosphate removal, +C Carbon infeed, +H Disinfection, +D Removal of nitrogen, External control cabinet for installing control unit outdoors

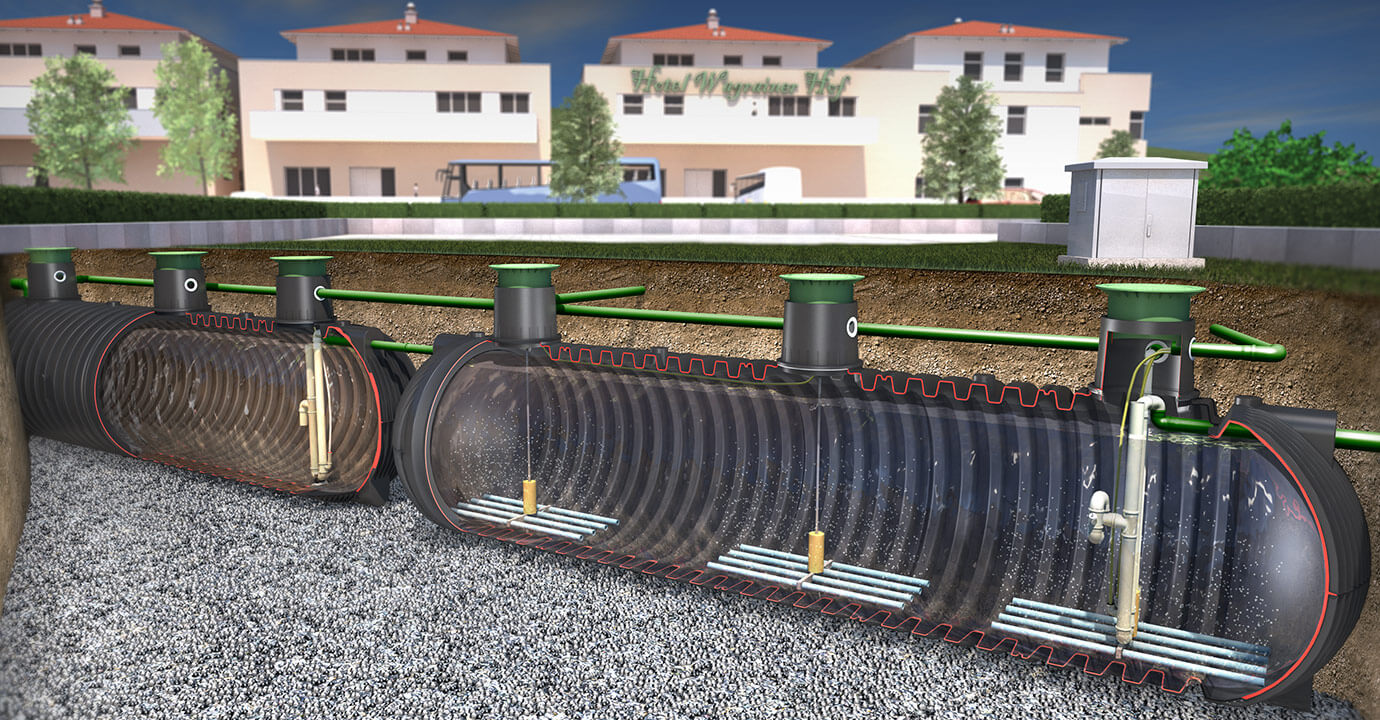

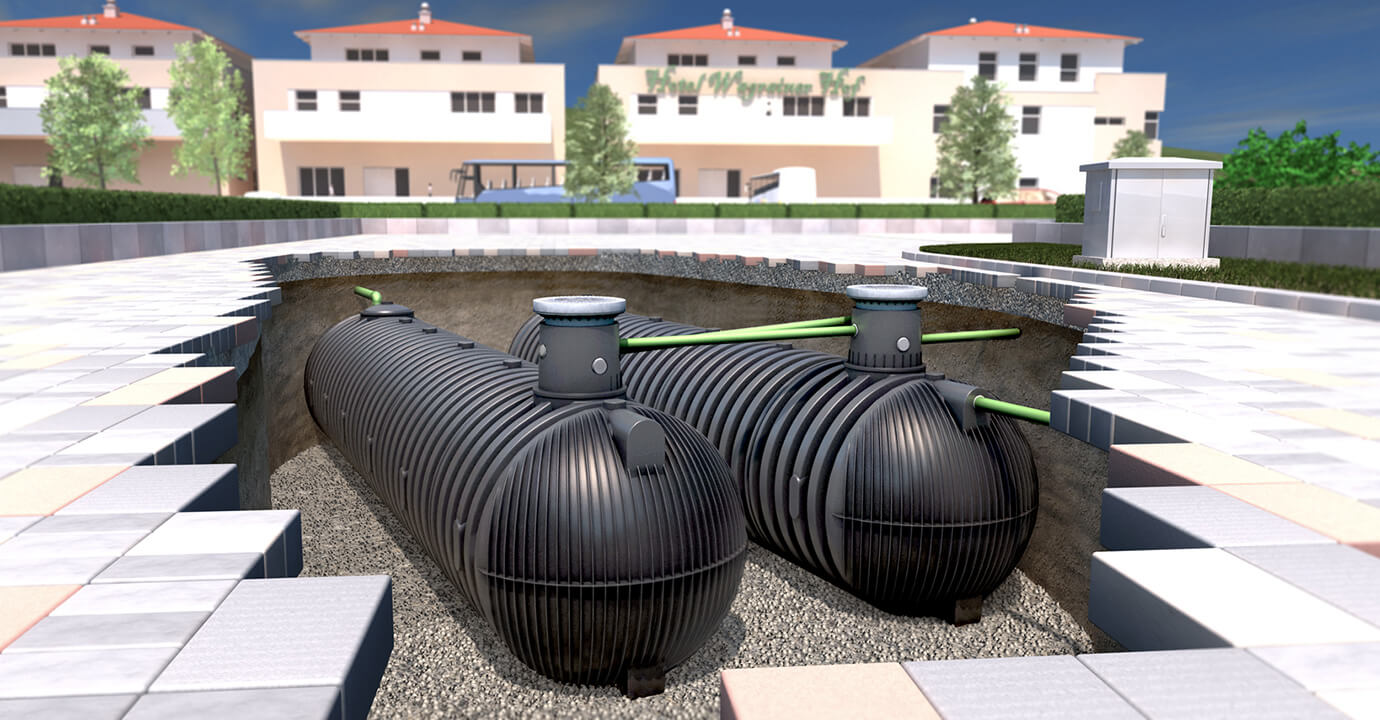

Scope of supply: Carat XXL underground tanks with factory-prefitted technology and control cabinet for internal fitting. The air hoses from the underground tanks to the control panel are not included.

Sizing

Inh.max. daily flow [l/d]Length [mm]Width [mm]order no.add to enquiry
10150022801985G50138
14210023902190G50142
22330051601985G50024
28420053802190G50026
355250155002040G50028
406000155002240G50030
507500113602190G50032
609000113602190G50034
751125099002500G50036
10015000129002500G50040
12518750162002500G50280
15022500177002500G50042
17526250216002500G50282
20030000264002500G50044
22033000235002500G50284
25037500133008700G50046
27541250305002500G50286
30045000133008700G50048
35052500199005600G50050
40060000214005600G50052
50075000275005600G50054
600900001620011800G50056
700105000275005600G50058
800120000262008700G50060
900135000291008700G50062
1000150000305008700G50064

calculated size Request for information
