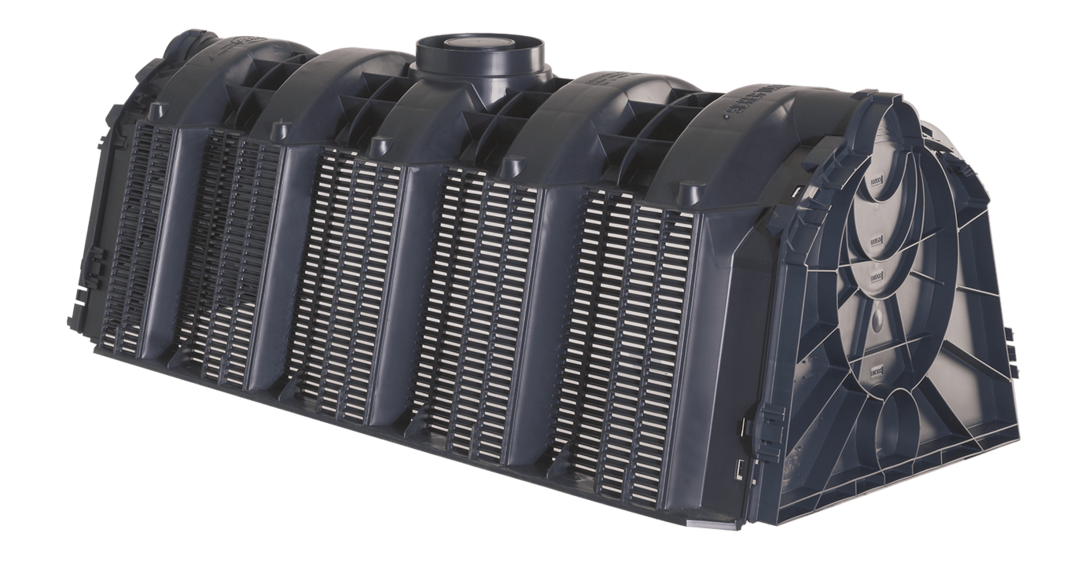

The Graf Infiltration Tunnel has been mainly designed for the use in private and rural areas. The system, which consists of one or more tunnel modules and two end plates, can be extended as desired. The tunnel is laid in one or more lines of the same level. As the weight of one module is only 11 kg, the handling of the Infiltration Tunnel is excellent. The surface above the tunnels is suitable for vehicle loading, offering varied possibilities for use.

Up to 12,000 litres infiltration volume per pallet

Thanks to its special design, the GRAF Infiltration Tunnel can be stacked easily. Consequently, the shipment of up to 40 Infiltration Tunnels on one pallet saves considerable transport and storage costs.

Vehicle loading

For versatility, the surface above the infiltration tunnels can withstand a continuous load of up to 100 kN/m2 and is therefore also suitable for vehicle loading.

Easy installation

The GRAF Infiltration Tunnels are laid in lines and can be flexibly adapted to specific conditions and to the individual storage volume requested. The installation of the modules is easy, quick and variable. Installation is possible without heavy equipment, as one Infiltration Tunnel weighs just 11 kg. The tunnel modules are simply joined together in a line and two end plates are fitted per line.

Advantages

Thought-out in every detail

100% Recycled
100% Recycled
100% Recycled

Made 100% from our own recycled material Upcyclen, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with long-lasting products!

Saves precipitation water charges
Saves precipitation water charges
Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Mounting of the modules is simple
Mounting of the modules is simple
Mounting of the modules is simple

The assembly of the modules is simple, fast and variable.

100% Recycled

Made 100% from our own recycled material Upcyclen, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with long-lasting products!

Saves precipitation water charges

This product allows you to save on rainwater charges. Please contact your municipality for more information.

Mounting of the modules is simple

The assembly of the modules is simple, fast and variable.

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]Quantityorder no.add to enquiry
3001160800510111230010

calculated size Request for information
