EcoLoop Saphir Hydrodynamic separator for the pre-treatment of precipitation water according to DWA-A 102.

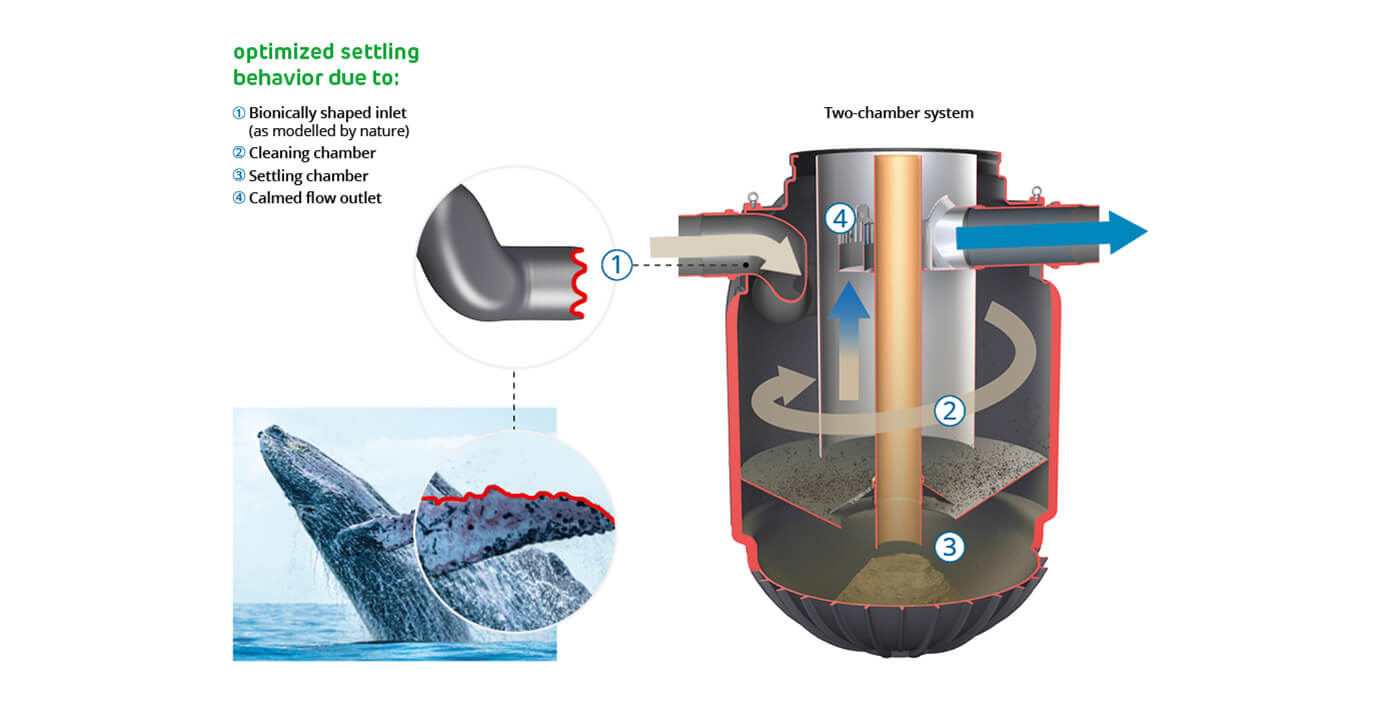

The EcoLoop Saphir is a hydrodynamic separator. The special inlet geometry reduces possible turbulence and thus ensures an optimized, tangential water inlet. Nature served as a model here. The specially shaped inlet and the division into several chambers ensure optimized settling behavior and reliable retention of filterable substances (AFS). This is also confirmed by laboratory tests conducted by the independent testing institute PIA Aachen. The EcoLoop can be used both for discharge into surface waters and upstream of a retention facility.
- Two-chamber system for optimized settling behavior
- Integrated flow separator prevents remobilization of sediments
- Effective sedimentation due to optimized, tangential inlet geometry
- Compact design, little space required
- Pre-assembled ready for installation
- No height offset between inlet and outlet
- Easy access for maintenance & cleaning
- Tested for retention of AFS63
- Suitable for pre-treatment of precipitation water according to DWA-A 102
- Truck-accessible cover in conjunction with load distribution plate
Scope of delivery:
- Fully assembled system with inlet and outlet pipe.
Not included in delivery:
- Suitable covers (must be ordered separately; see accessories)
- Intermediate piece (optional)
Sizing
| Length [mm] | Width [mm] | Height [mm] | Weight [kg] | Ø [mm] | order no. | add to enquiry |
|---|---|---|---|---|---|---|
| 1280 | 1190 | 1685 | 114 | 1155 | 470030 |
calculated size Request for information
