Maximum efficiency – Minimum retention volume
The EcoFlow Control uses a flexible membran to regulate the outlow. This ensures precise control, regardless of the water level. Compared to a static throttle system, the EcoFlow Control is characterised by its excellent performance.
Due to the steep rise in the characteristic curve and the resulting constant drain value, an efficiency of over 80 per cent is achieved. This high level of efficiency often results in a significant reduction in the required retention volume.
- Reduced attenuation volume thanks to optimal efficiency compared to other flow control systems
- Constant discharge value independent of water level
- Discharge values up to 20 l/s possible

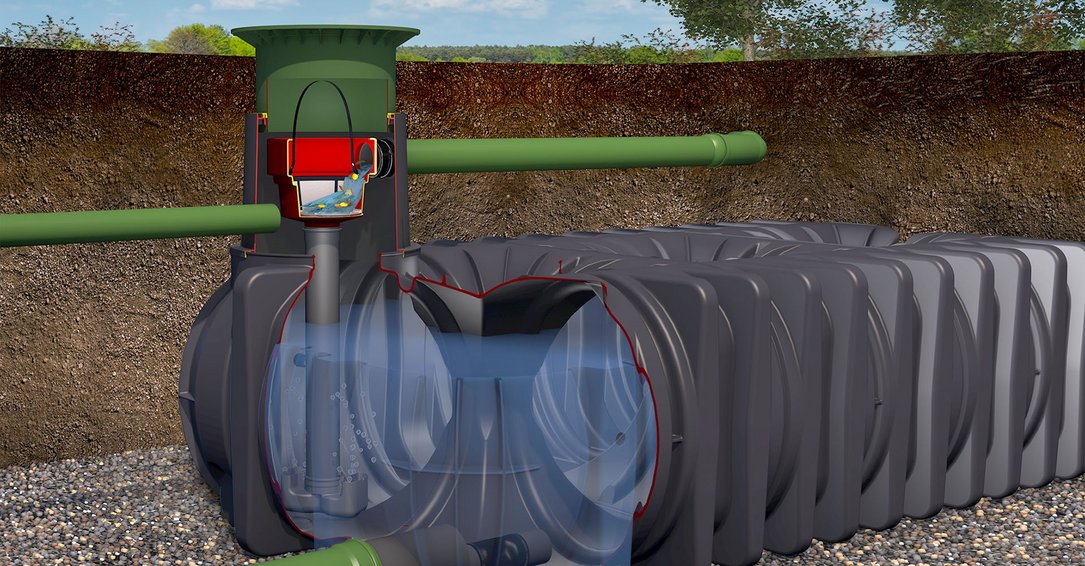

- Pre-assembled and ready for installation in a Carat or Platin retention tank.
- Ready for installation in a Vario 800 shaft system Simple inspection and maintenance in a Vario 800 shaft system thanks to removal option
Sizing
| Length [mm] | Width [mm] | Height [mm] | Weight [kg] | Ø [mm] | order no. | add to enquiry | |
|---|---|---|---|---|---|---|---|
| Package S | 4,0 – 6,9 l/s | 640 | 200 | 200 | 1.6 | 200 | 369067 | |
| Package M | 7,0 - 8,9 l/s | 670 | 200 | 200 | 1.8 | 200 | 369068 | |
| Package L | 9,0 – 10,4 l/s | 700 | 200 | 200 | 2.2 | 200 | 369069 | |
| Package XL | 10,5 – 13,9 l/s | 720 | 200 | 200 | 2.4 | 200 | 369070 | |
| Package 2XL | 14,0 – 17,9 l/s | 750 | 250 | 250 | 4 | 250 | 369071 | |
| Package 3XL | 18,0 – 20,0 l/s | 760 | 250 | 250 | 4.1 | 250 | 369072 |
calculated size Request for information
