For overground and underground installation
- Stability tested according to European standard (DIN EN 12566-1)
- Construction approved by DIBt for domestic wastewater
- Groundwater stable
- Fits through any door (≥ 80 cm) – each half shell weighs just 30 kg
- Fast tank fitting with profile seal and fast connectors
- Tanks can be used as rainwater harvesting systems after thorough cleaning
- Can be expanded as required

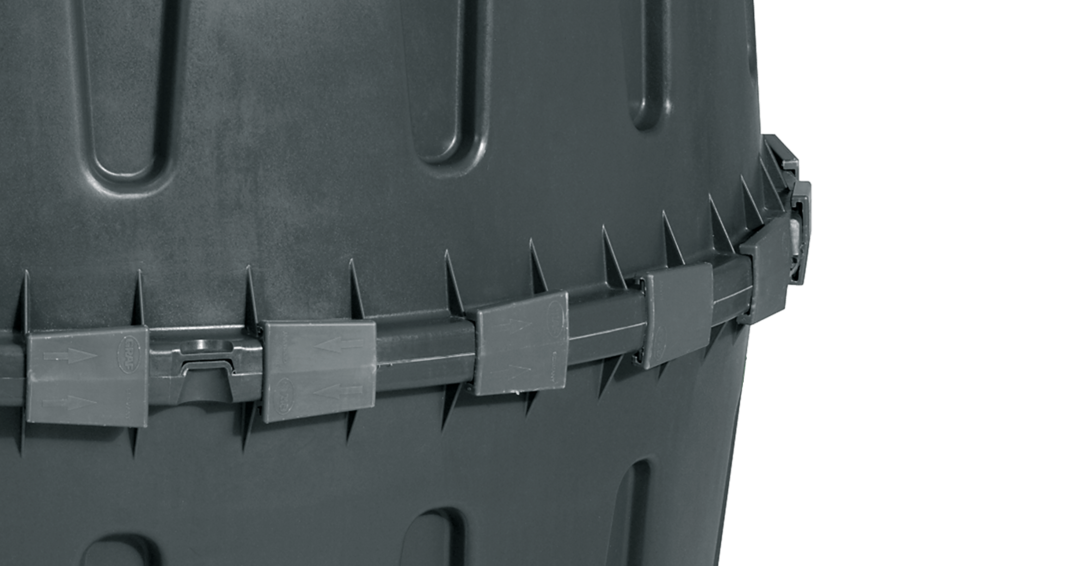

Durably sealed thanks to solid profile sealing (Sealing life-time of more than 25 years proven in laboratory tests)
Can be extended as desired
Shape-matched end connectors and connection surfaces enable volumes of several 10,000 l (2,639 US-gal)
Easy transport
Thanks to low weight of 30 kg per half shell and practical size; fits through all doorways (≥ 80 cm)
Stackable
Advantages
Thought-out in every detail
The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.
Due to the constant contact with wastewater, concrete tanks are always at risk of corrosion. Depending on the degree of damage, this can result in expensive renovation of the tank. Plastic tanks are not at risk of corrosion due to their nature.
The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.
Due to the constant contact with wastewater, concrete tanks are always at risk of corrosion. Depending on the degree of damage, this can result in expensive renovation of the tank. Plastic tanks are not at risk of corrosion due to their nature.
Sizing
| Volume [l] | Height [mm] | Weight [kg] | Ø max. [mm] | Length [mm] | Width [mm] | order no. | add to enquiry |
|---|---|---|---|---|---|---|---|
| 1600 | 1600 | 60 | 1350 | 1365 | 1365 | 100010 | |
| 3200 | 1600 | 60 | 1350 | 2730 | 1350 | On request | |
| 4800 | 1600 | 60 | 1350 | 4135 | 1350 | On request | |
| 6400 | 1600 | 60 | 1350 | 5540 | 1350 | On request | |
| 8000 | 1600 | 60 | 1350 | 6945 | 1350 | On request | |
| 9600 | 1600 | 60 | 1350 | 8350 | 1350 | On request |
calculated size Request for information
