one2cleanXtra - domestic wastewater solutions in the Carat S - 3 – 9 PE (450 – 1,350 l/day)
- The clever way to produce clear water
Our systems up to 70 PE are ideal for making the most of limited space and where high nutrient removal is required. - Is odourless
The entire volume of wastewater is activated with oxygen. The system produces an odourless, clear treated water for extraction to soakaway or waterway. - Already meets the needs of tomorrow
The wastewater treatment systems can achieve sustainable discharge values with an efficiency factor of up to 99 %! This offers high investment security –
even if legal requirements become stricter.
Why use the one2cleanXtra system?
- Excellent cleaning performance - Even during load fluctuations and underload
- Great value for money
- Double sludge storage volume
- Low sludge removal
- Efficiency factor of up to 99 %
- Incredibly little sewage sludge
- Minimal maintenance costs
- Minimal power consumption

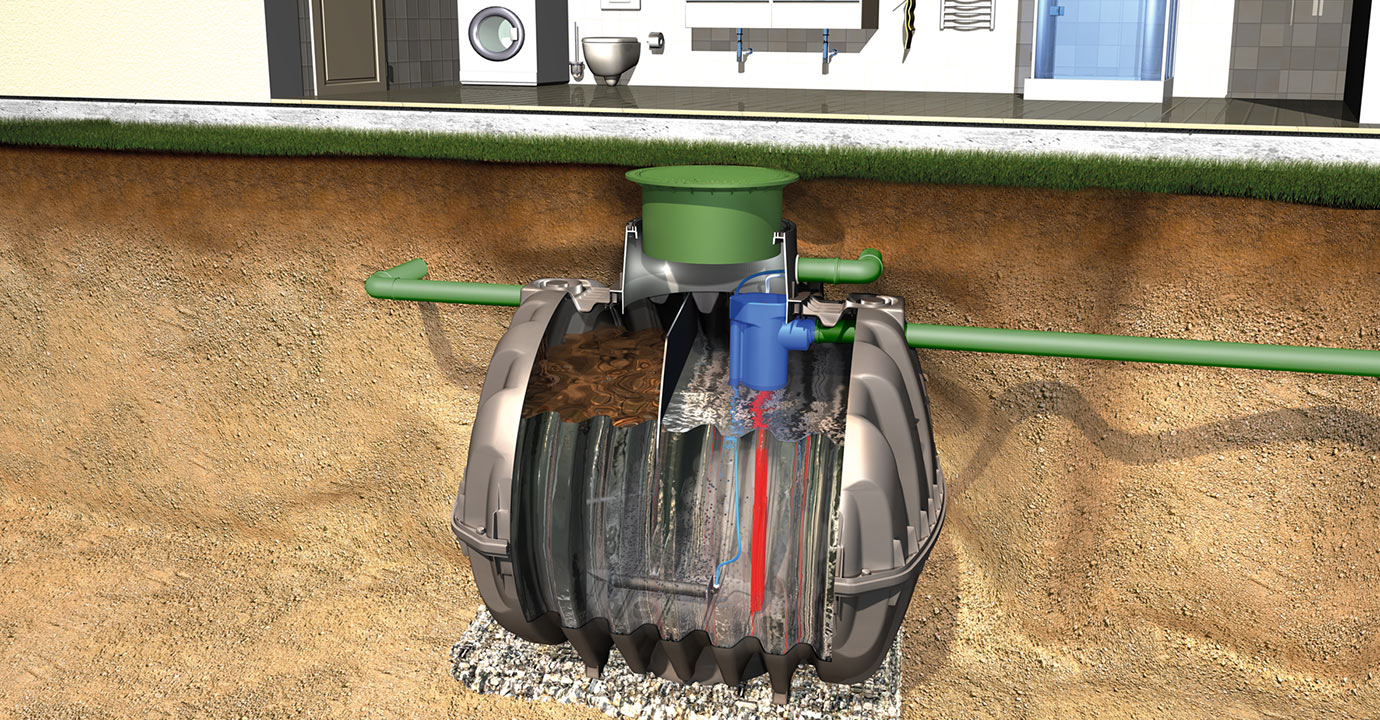

Scope of supply: Carat S underground tank, tank dome, telescopic dome shaft 600, one2clean system pack, sludge removal kit.
Please order the air hoses separately!
Advantages
Thought-out in every detail
PP control cabinet including new control system. Click here for more information.
The inflowing water is directly aerated and thus supplied with oxygen. In this way, biological purification of the water begins immediately.
The optional outdoor cabinet made of plastic ensures easy access for the maintenance technician even without an appointment. Also an optimal solution for large distances (>20m) between the system and the house.
PP control cabinet including new control system. Click here for more information.
The inflowing water is directly aerated and thus supplied with oxygen. In this way, biological purification of the water begins immediately.
The optional outdoor cabinet made of plastic ensures easy access for the maintenance technician even without an appointment. Also an optimal solution for large distances (>20m) between the system and the house.
Significantly lower energy consumption due to only one conveying process. In addition, energy-saving stepper motors are used instead of solenoid valves.
Sizing
| Inh. | max. daily flow [l/d] | Volume [l] | Set consisting of: | Length [mm] | Height [mm] | Width [mm] | Weight [kg] | order no. | add to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 1-3 | 450 | 2700 | 1x2700 | 2080 | 1690 | 1556 | 120 | 106417 | |
| 4-5 | 750 | 3750 | 1x3750 | 2280 | 1880 | 1755 | 150 | 106418 | |
| 6-7 | 1050 | 4800 | 1x4800 | 2280 | 2110 | 1985 | 185 | 106419 | |
| 8-9 | 1350 | 6500 | 1x6500 | 2390 | 2390 | 2190 | 220 | 106420 |
calculated size Request for information
