one2cleanXtra - fully pre-fitted domestic wastewater solutions up to 70 PE (up to 10,500 l/day)
- The clever way to produce clear water
Our systems up to 70 PE are ideal for making the most of limited space and where high nutrient removal is required. - Is odourless
The entire volume of wastewater is activated with oxygen. The system produces an odourless, clear treated water for extraction to soakaway or waterway. - Already meets the needs of tomorrow
The wastewater treatment systems can achieve sustainable discharge values with an efficiency factor of up to 99 %! This offers high investment security –
even if legal requirements become stricter.
Why use the one2cleanXtra system?
- Excellent cleaning performance - Even during load fluctuations and underload
- Great value for money
- Double sludge storage volume
- Low sludge removal
- Efficiency factor of up to 99 %
- Incredibly little sewage sludge
- Minimal maintenance costs
- Minimal power consumption
Scope of supply: Carat XL/XXL underground tank, tank domes maxi, telescopic dome shafts 600, fully pre-fitted technology and indoor control cabinet and sludge removal kit.

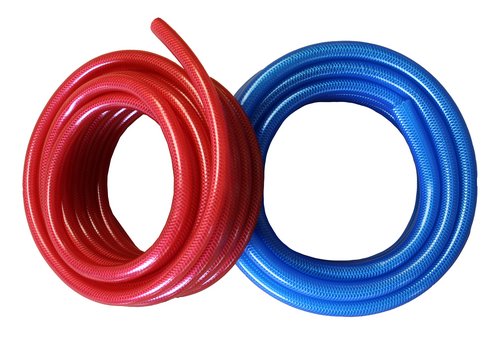

Air hoses are not included and must be ordered separately!
Advantages
Thought-out in every detail
PP control cabinet including new control system. Click here for more information.

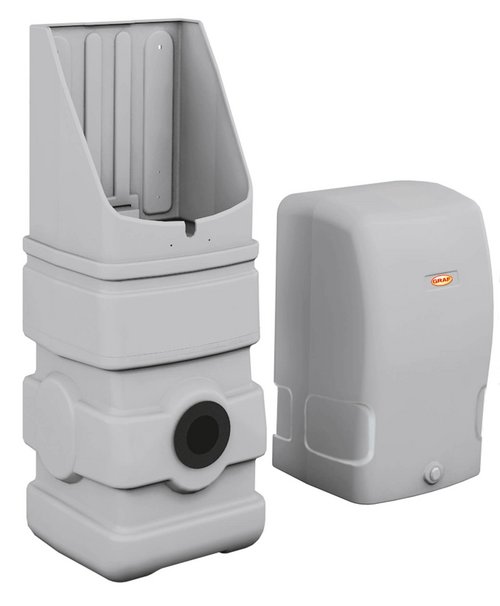

The optional outdoor cabinet made of plastic ensures easy access for the maintenance technician even without an appointment. Also an optimal solution for large distances (>20m) between the system and the house.

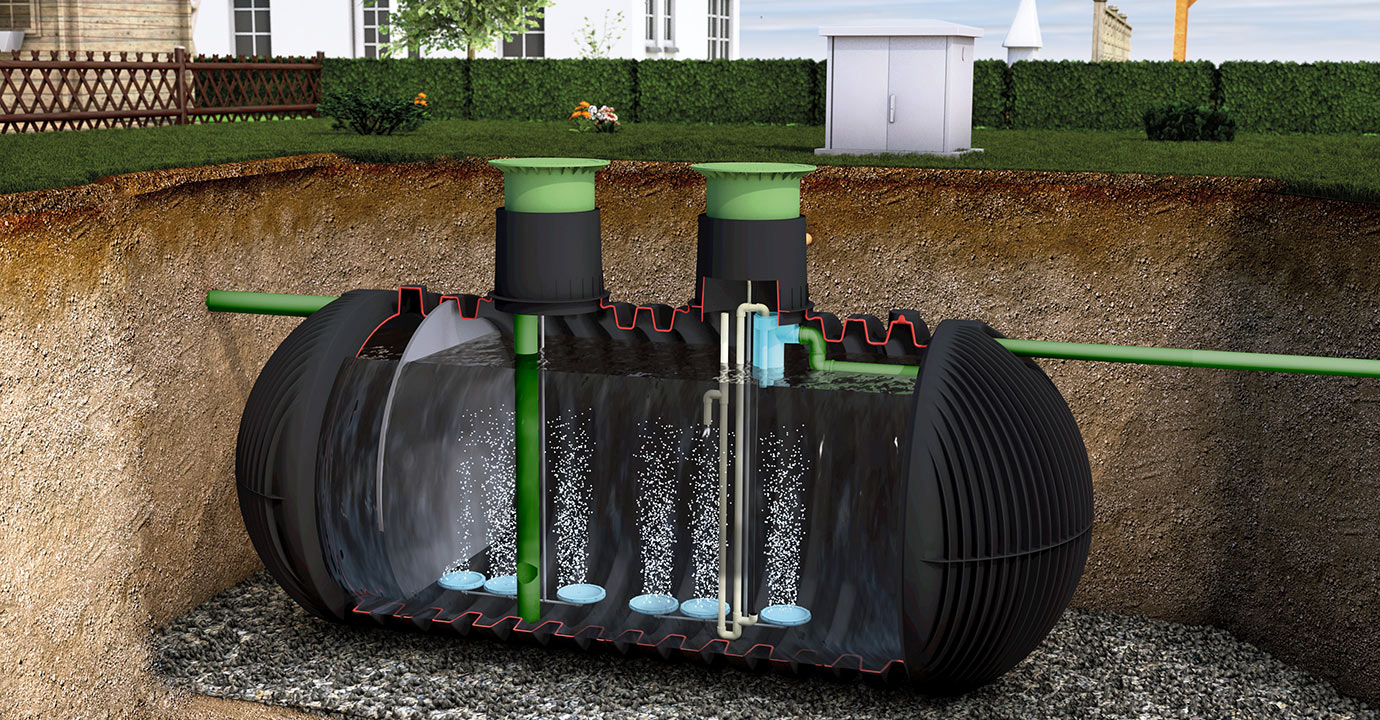

The inflowing water is directly aerated and thus supplied with oxygen. In this way, biological purification of the water begins immediately.
PP control cabinet including new control system. Click here for more information.
The optional outdoor cabinet made of plastic ensures easy access for the maintenance technician even without an appointment. Also an optimal solution for large distances (>20m) between the system and the house.
The inflowing water is directly aerated and thus supplied with oxygen. In this way, biological purification of the water begins immediately.
Significantly lower energy consumption due to only one conveying process. In addition, energy-saving stepper motors are used instead of solenoid valves.
Sizing
| Inh. | max. daily flow [l/d] | Volume [l] | Length [mm] | Height [mm] | Width [mm] | Weight [kg] | order no. | add to enquiry |
|---|---|---|---|---|---|---|---|---|
| 12 | 1800 | 8500 | 3500 | 2085 | 2040 | 380 | 105336 | |
| 15 | 2250 | 10000 | 3520 | 2285 | 2240 | 455 | 105337 | |
| 19 | 2850 | 13000 | 4000 | 2470 | 2420 | 600 | 105338 | |
| 24 | 3600 | 16000 | 4590 | 2550 | 2500 | 770 | 105339 | |
| 32 | 4800 | 22000 | 6230 | 2550 | 2500 | 1025 | 105340 | |
| 45 | 6750 | 32000 | 8440 | 2550 | 2500 | 1405 | 105341 | |
| 50 | 7500 | 38000 | 10010 | 2550 | 2500 | 1500 | 105342 | |
| 60 | 9000 | 44000 | 11500 | 2550 | 2500 | 1795 | 105368 | |
| 70 | 10500 | 48000 | 12400 | 2550 | 2500 | 1890 | 105369 |
calculated size Request for information
